Visualize Your BESS Hierarchy and See Where Issues Occur

A battery energy storage system is made up of multiple components. For large sites in particular, it can be challenging to grasp how exactly everything fits together. We've now introduced the BESS Hierarchy Diagram to provide clarity and actionable insights. In just one view, you can:

• Understand how your BESS fits together

• See immediately if any action is required

• Understand where exactly in your system action is required.

Benefits for different stakeholders

The diagram provides a useful overview of your site, and is beneficial for multiple stakeholders involved in BESS management and operations:

• Asset managers: Use the diagram as a basis to communicate with performance engineers and operations teams.

• Performance Engineers: Use the diagram as a starting point for identifying issues, understanding how your system is running, and developing strategies for performance improvements.

• Operations Managers: point O&M teams to the exact location of problems during on-site visits.

Using Hierarchy Diagram — Step by Step:

Watch this quick tutorial video to learn all about Hierarchy Diagram or contunie with steps below:

Expand and Collapse

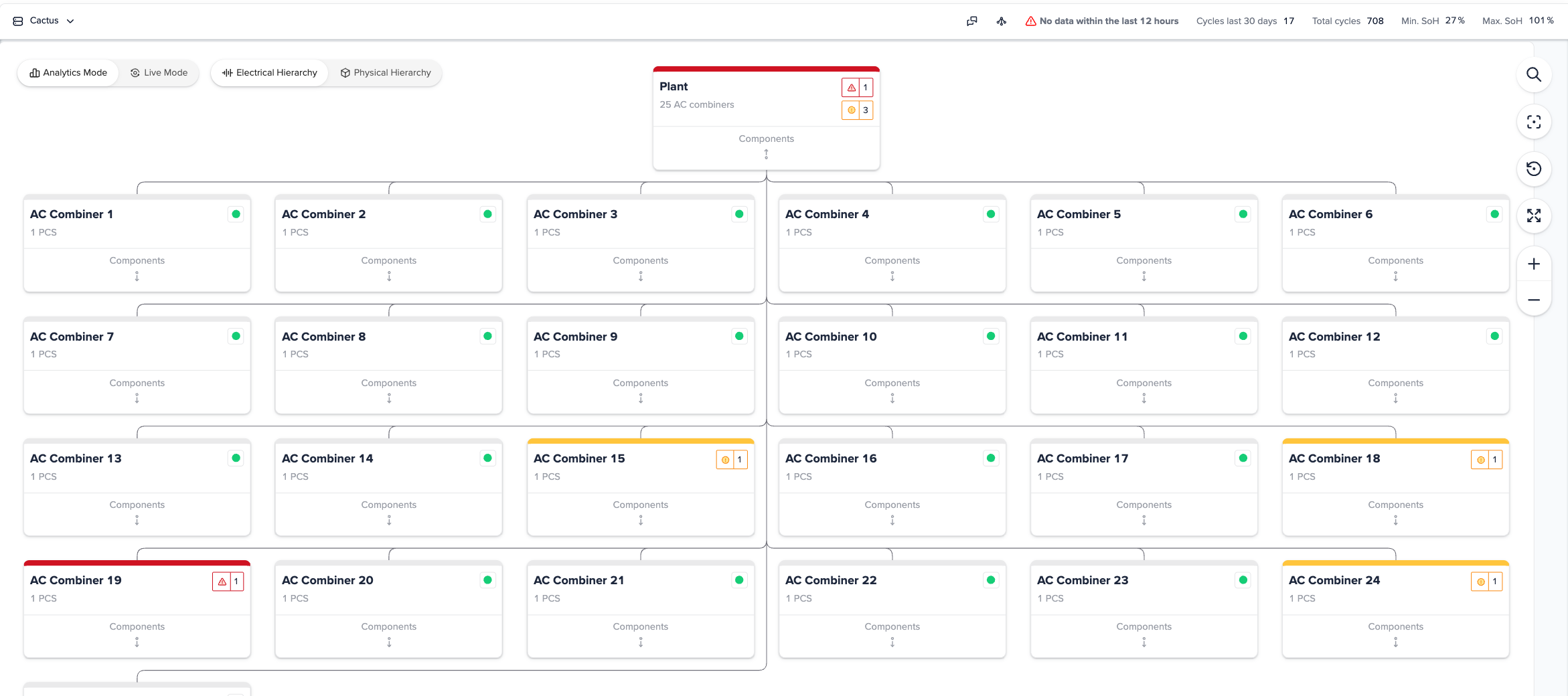

First, simply click on "Hierarchy Diagram" in the navigation to view your site hierarchy.

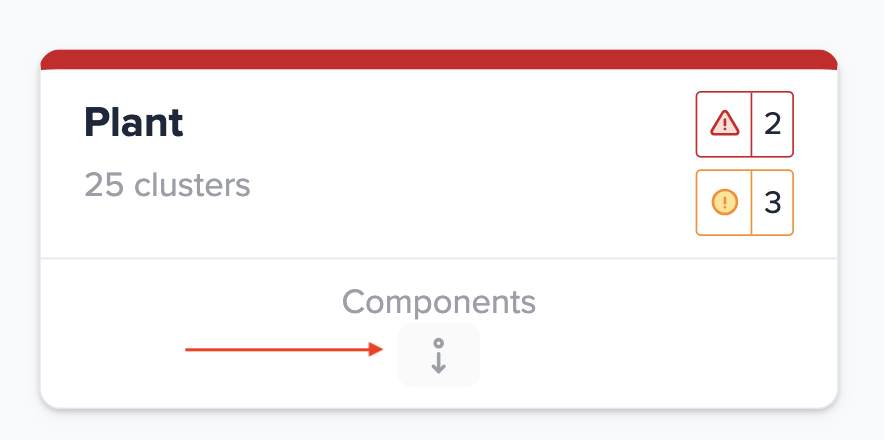

You can easily expand the diagram to view sub-components. Simply click on the arrow under "Components" to expand the diagram. Click again to collapse.

Alerts and Analytics

Each tile represents a component in the system. The top bar is colored red or yellow depending on present alerts on that component which requires your attention.

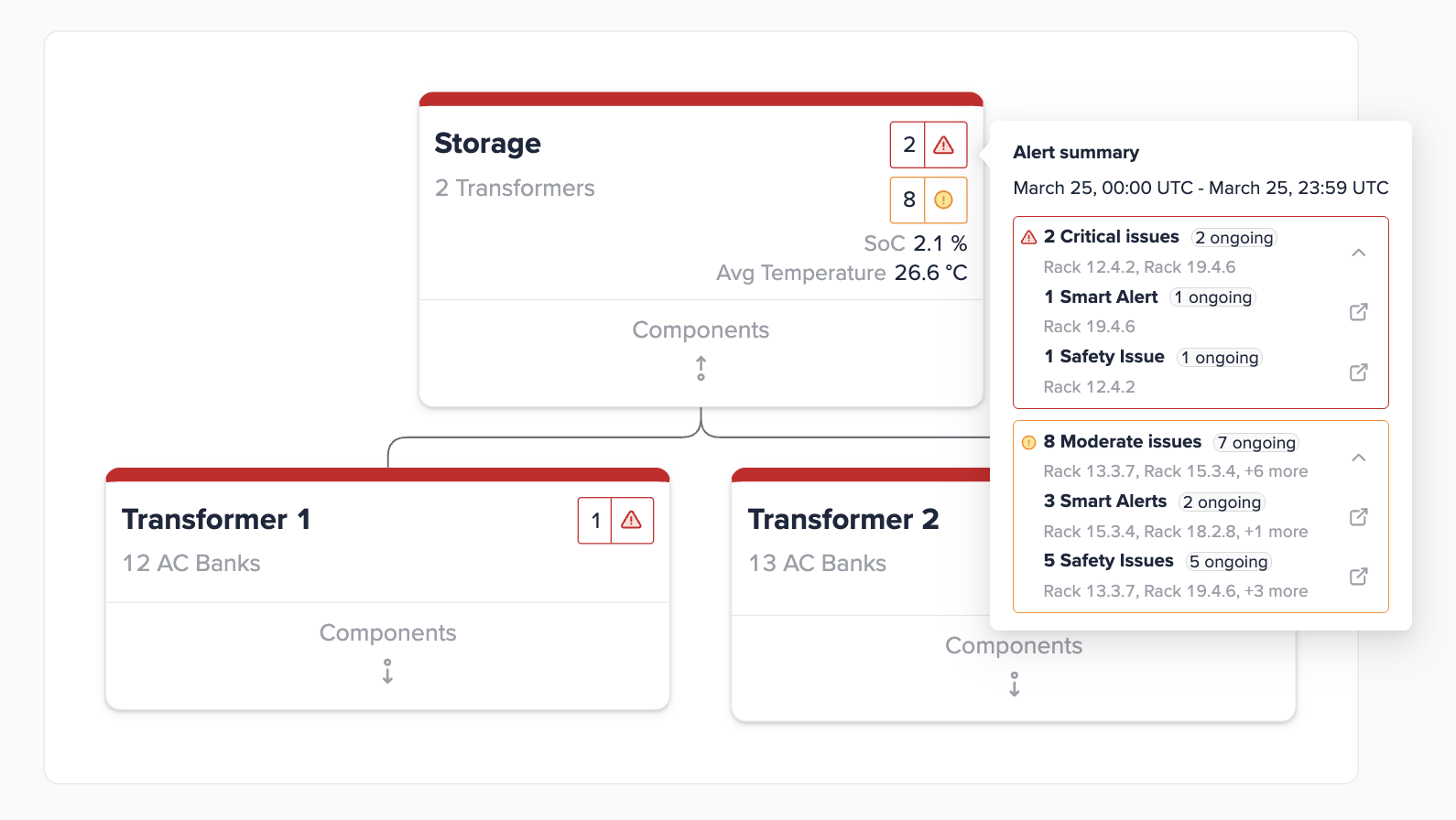

Alerts: To see what alerts are coming up, hover over them. You'll then have the option to go directly to Smart Alerts or Safety alerts investigate them in more detail.

Navigation

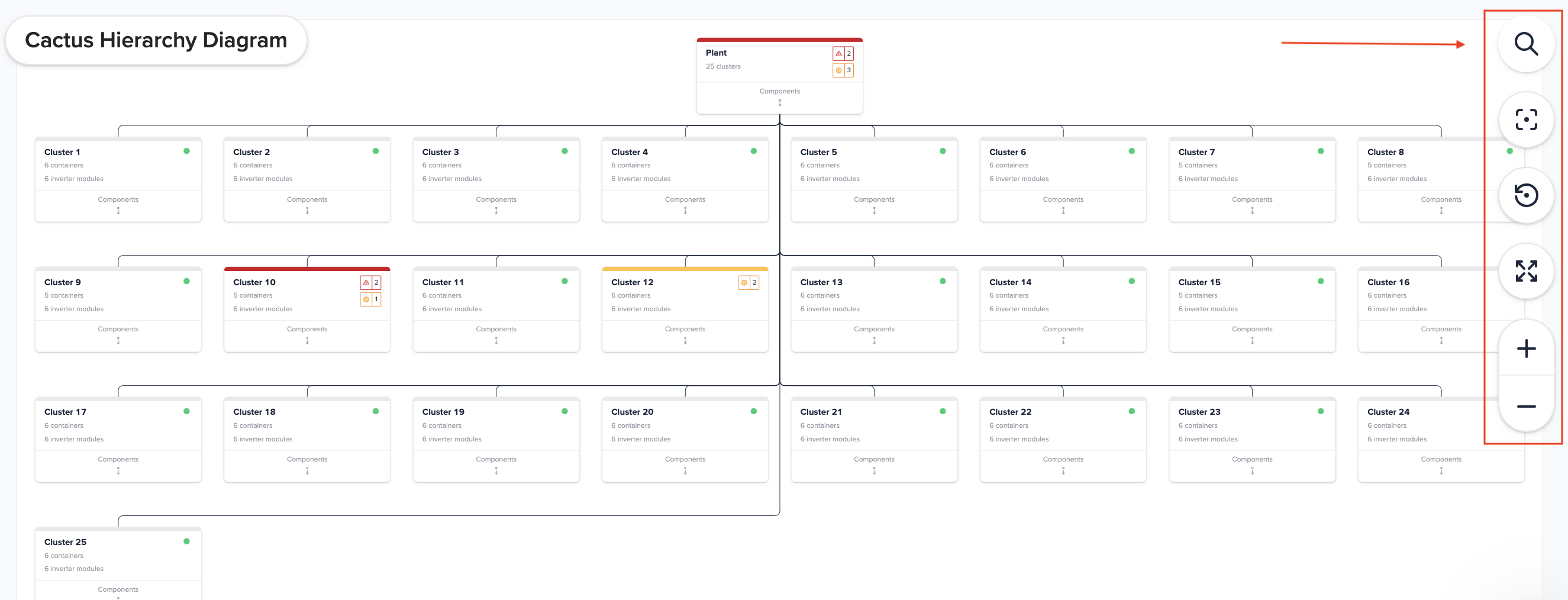

Easily navigate your way through the diagram with the toolbar on the right-hand size:

• Search for an individual component

• Center the diagram

• Reset the diagram

• Enter full-screen

• Zoom in and out

Toggle between Live Mode and Analytics Mode

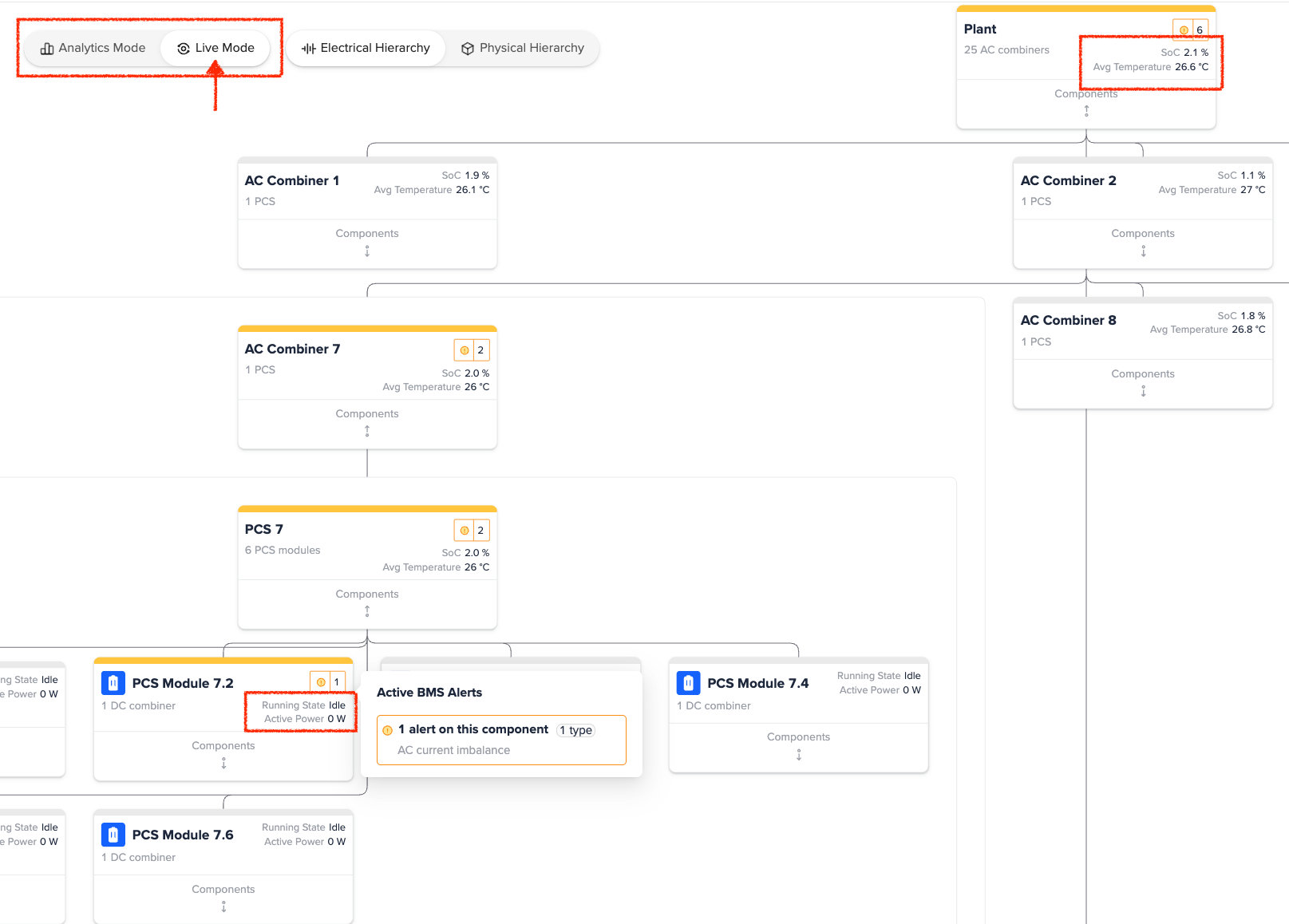

Live mode

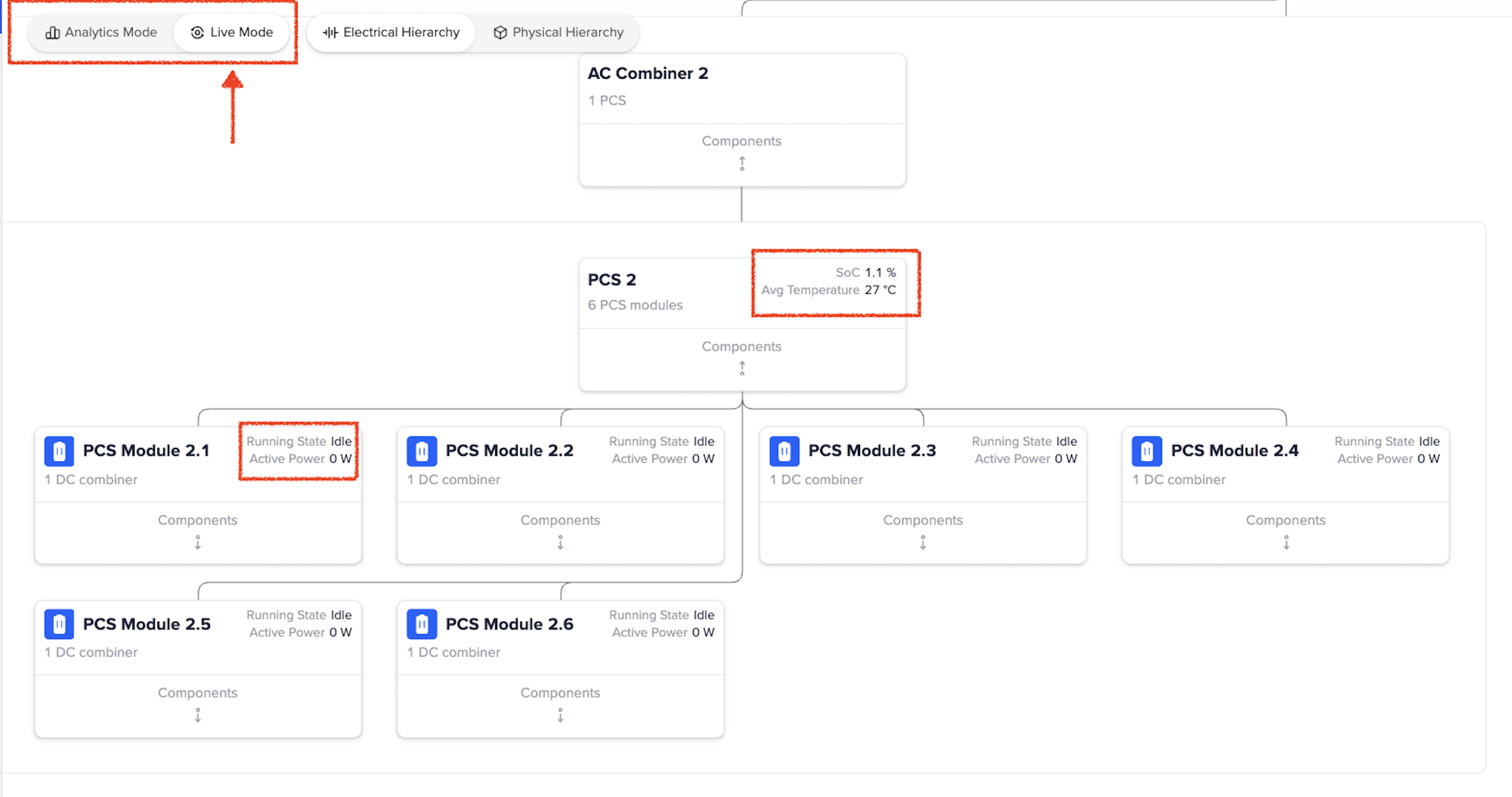

The live mode is intended to give you a close to real-time monitoring ability. It shows State of Charge and average temperature, as well as running state (idle, discharging or charging) and active power for individual modules. Please note that the delay depends on your data connection - if using an API connection, this data can be shown in real-time.

Analytics mode

Analytics mode, shown in the image above, gives you an overview of the alerts that are occurring in your system. By clicking on the alert, you can dig deeper to explore and resolve the issue.

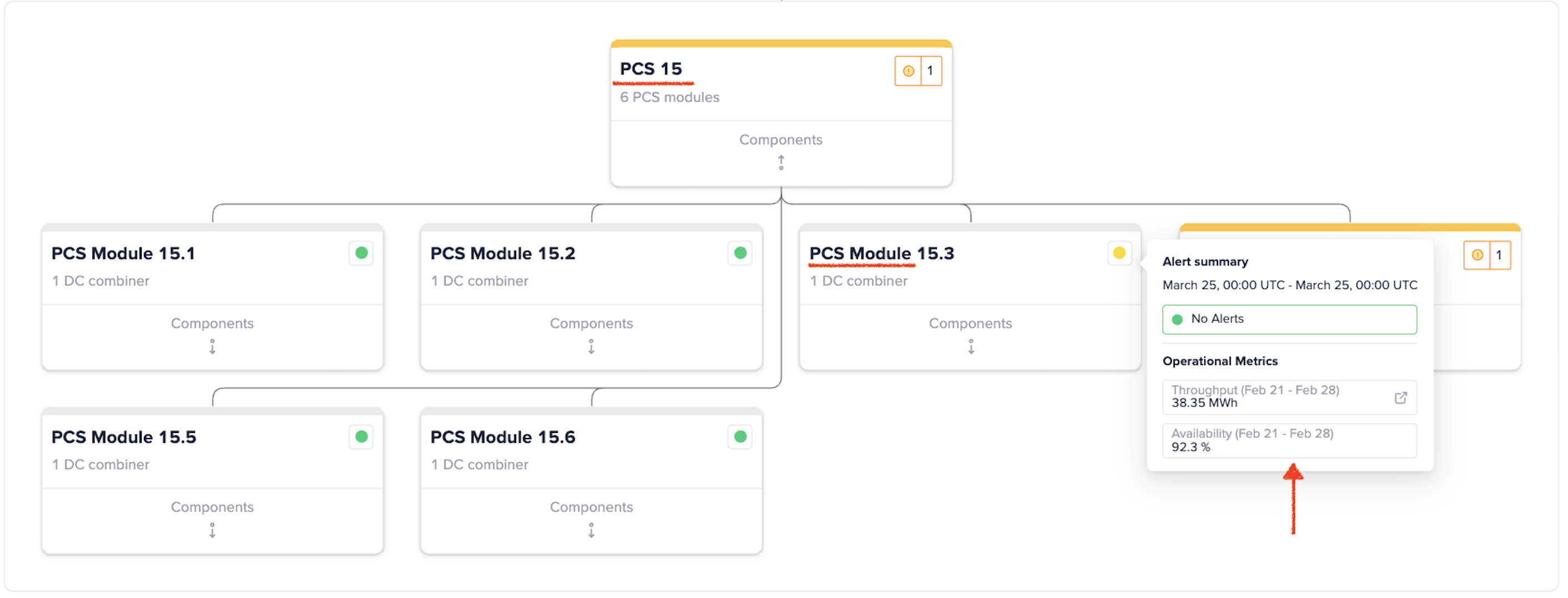

Operational Metrics: See important operational metrics of the components such as cycles, throughput, availability and SoH in plant level.

Recoverable Energy: Directly access usable/ recoverable energy metrics and get a quick overview if there is any components blocking usable energy.

Toggle between Electrical and Physical Hierarchy

Electrical Hierarchy

Electrical Hierarchy, displays how individual components are wired together, focusing only on elements that affect energy flow. Components with multiple parent connections are shown in their own subtrees for clarity.

Physical Hierarchy

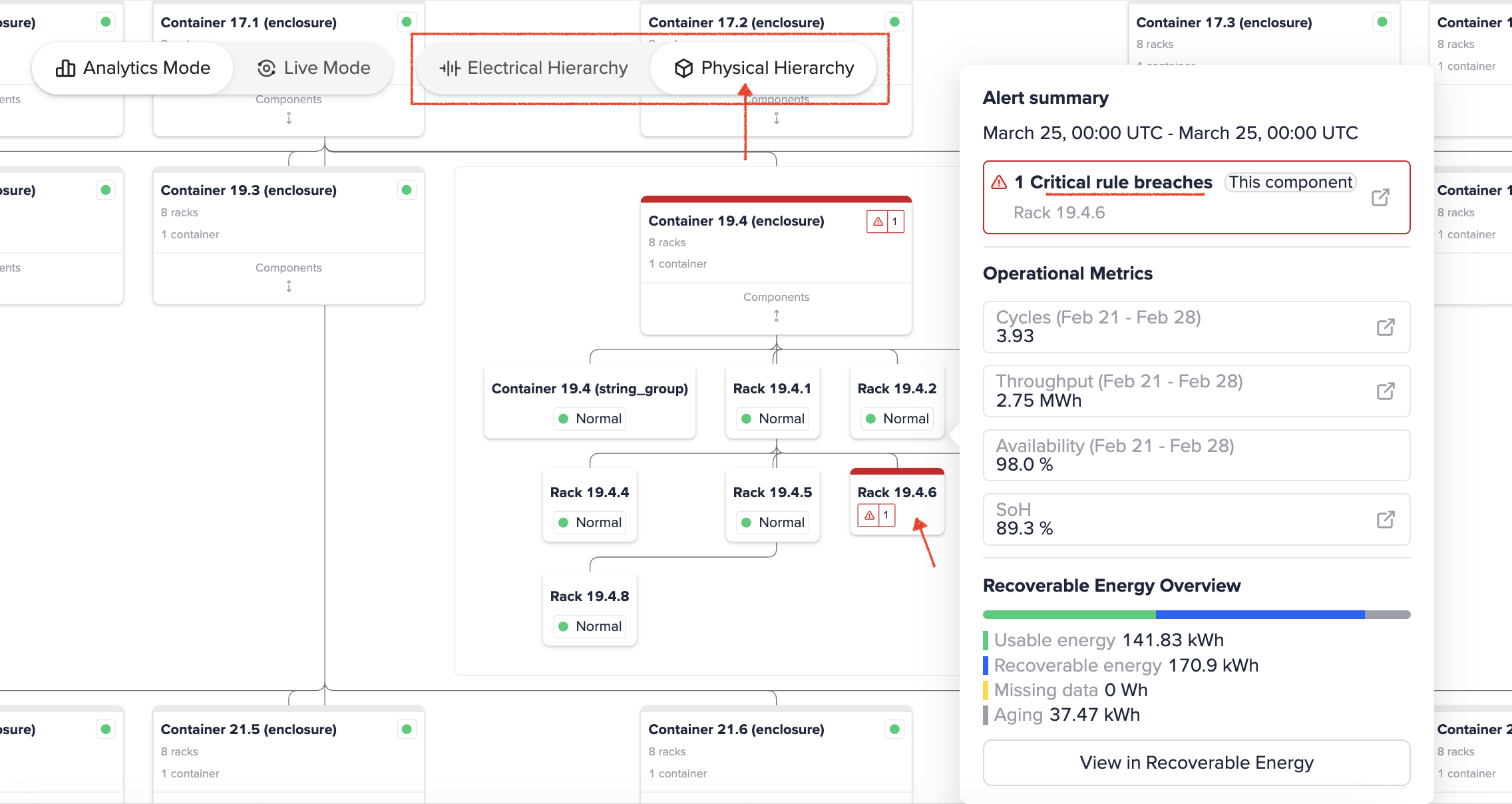

Physical Hierarchy option shows all physical enclosures (e.g., racks, containers) together with their direct electrical children. Electrical components such as Strings or PCSs appear within their physical housing rather than by wiring.

PCS Insights

Access PCS and PCS Module insights in this view as well, such as alerts, throughput, availability and running states.

We're always open to feedback!

We're really exited to bring you the first version of the BESS Hierarchy Diagram. We will be rolling out a number of improvements over the next few weeks and months. We're always happy to hear your feedback. Just reach out to us!
